• Manufacturer Part #:STM32H743VIT6
• Product Category: Microcontrollers
• Manufacturer: STMicroelectronics
• Description:MCU ARM® Cortex®-M7 32-Bit -40°C ~ 85°C (TA) FLASH 2MB (2M x 8) STM32H7 480MHz
• Package:100-LQFP Quantity:14301 PCS
• Lead-Free Status / RoHS Status: Lead-free / RoHS Compliant
• Lead Time: 3(168 Hours)
• Data Sheet:  STM32H743VIT6 Datasheet

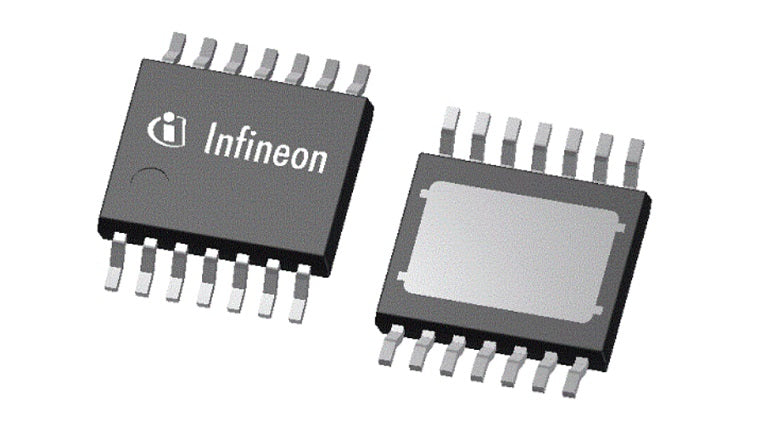

The TLD5099EP is the newest member of the well-established LITIX Power Family. It is a LED boost controller with built-in protection features. The controller concept of the TLD5099EP allows multiple configurations such as Boost, Buck, Buck-Boost, SEPIC, and Flyback by simply adjusting the external components. Thanks to this the TLD5099EP is a quite easy to use and flexible device that comes without SPI but still with a quite powerful feature set. The main difference between the other family members TLD5097EP and TLD5098EP is an integrated spread spectrum feature and an integrated PWM engine.

Key features

• Constant current or constant voltage regulation
• Switching frequency range from 100 kHz to 500 kHz
• Synchronization with an external clock source
• Analog dimming and PWM dimming feature to adjust average LED current

Additional features

• Integrated PWM Engine and spread spectrum feature
• PWMO gate driver for PWM dimming and output disconnection
• Open circuit detection, short to GND protection, output overvoltage protection
• Internal soft-start,  over-temperature shutdown

Applications

• Automotive Interior and Exterior Lights
• Pre-Regulator for Rear Light Applications
• Daytime Running LED Lights

The controller concept of the TLD5097EP allows multiple configurations such as Boost, Buck, Buck-Boost, SEPIC and Flyback by simply adjusting the external components. Thanks to this the TLD5097EP is a quite easy to use and flexible device that comes without SPI but still with a quite powerful feature set. It is very similar to TLD5098EP but without a dedicated PWM driver and without short-to-ground protection. Therefore it is a good alternative device for applications where the electronic is integrated into the same housing with the load it is often the case for separately placed day-time-running lights or in some cost-effective LED headlamps.

Summary of Features

• Single-Channel Multitopology (B2B, B2G, SEPIC, Flyback) DC-DC Controller
• Constant Current or Constant Voltage Regulation
• Wide Input Voltage Range from 4.5 V to 45 V
• Very Low Shutdown Current: I q_OFF < 10 µA
• Switching Frequency Range from 100 kHz to 500 kHz
• Synchronization with an external clock source
• PWM
• Dimming
• Analog Dimming feature to adjust average LED current
• Internal 5 V Low Drop Out Voltage Regulator
• Open Circuit Detection
• Output Overvoltage Protection
• Internal Soft Start
• Over-Temperature Shutdown
• 300mV High Side Current Sense to ensure highest flexibility and LED current accuracy

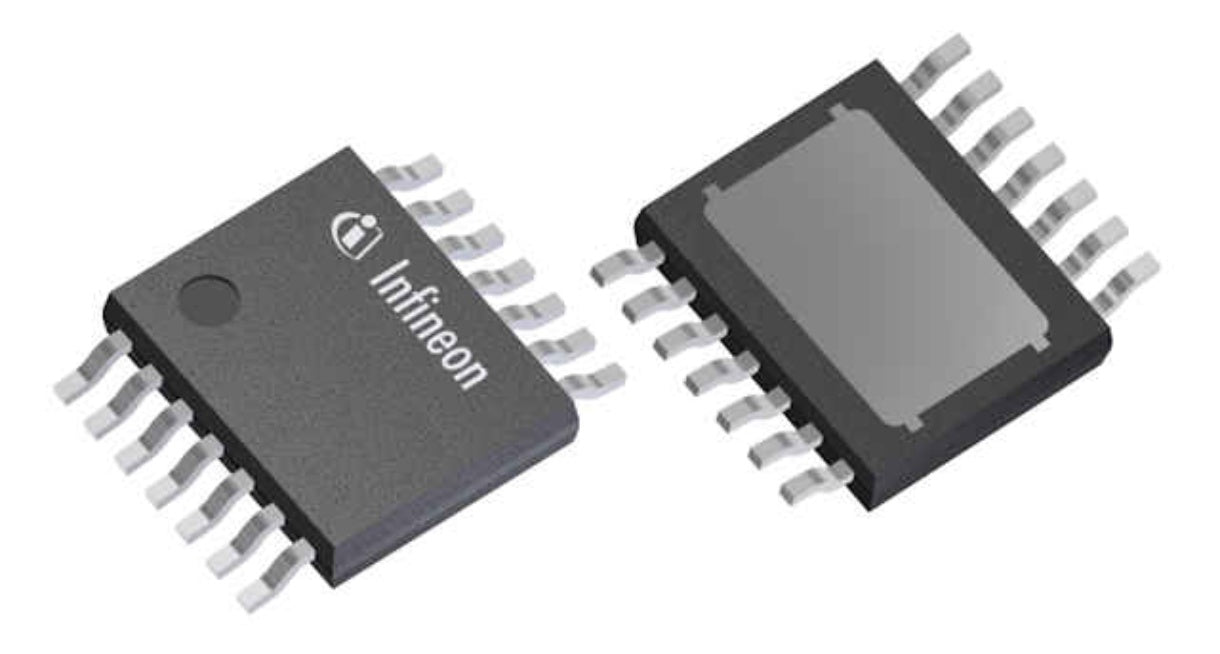

• Available in a small thermally enhanced PG-SSOP-14 package
• Automotive AEC Qualified

Potential Applications

• Automotive interior and exterior lights
• LED daytime running lights, Low Beam, High Beam or combined Low- and Highbeams
• Pre-regulator e.g. for rear light applications
